Fine grille accessories

2025-06-24

Integrated Process

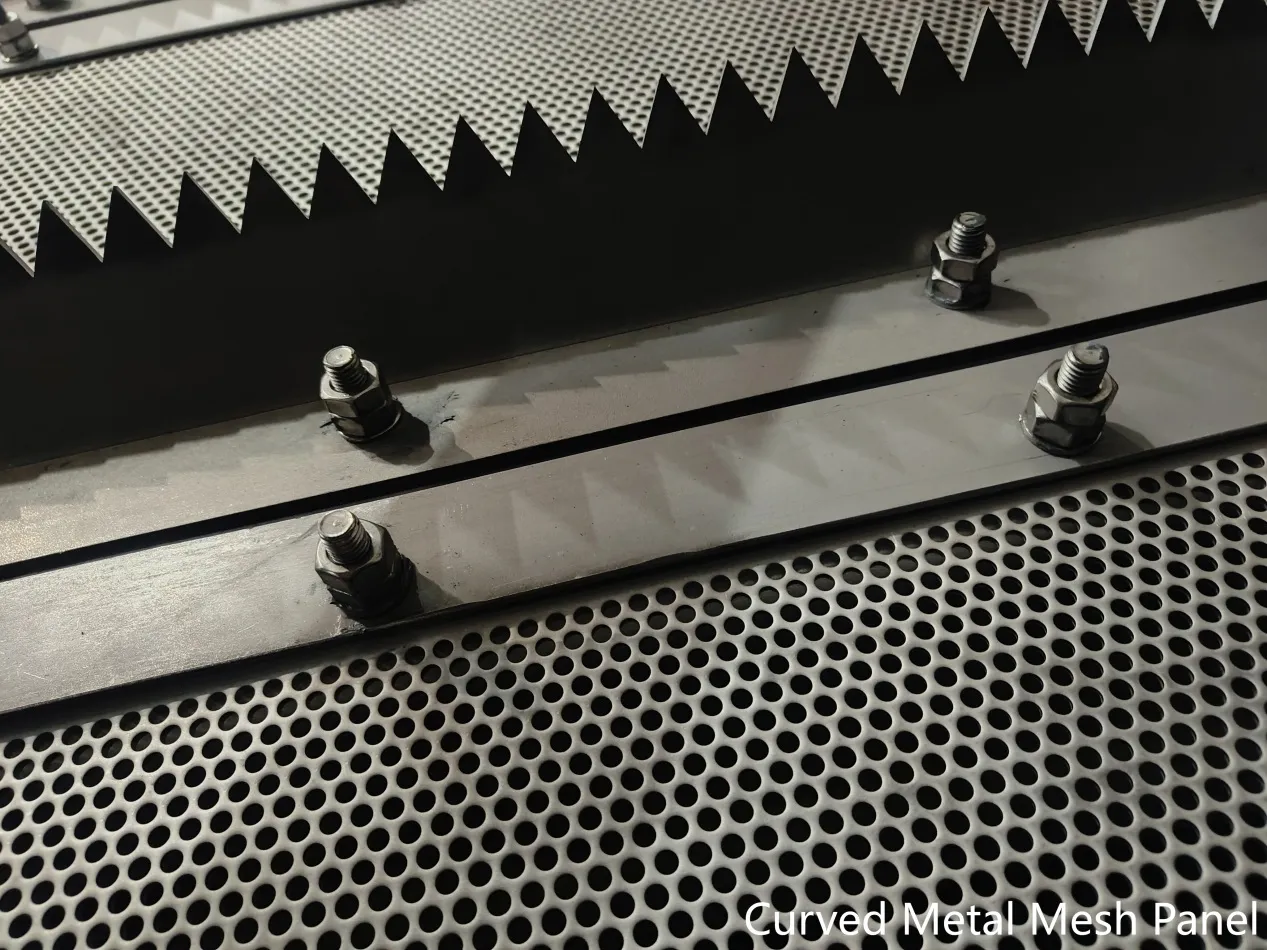

Curved Metal Mesh Panel

• No seam, anti-corrosion.

• Stainless steel frame and longitudinal reinforcing ribs ensure impact resistance of mesh panel.

• Standardized mesh panel design,easy to be assembled and replaced.The fine screens with aperture of3mm/5mm can effectively remove small solids, hair, and fibers in water improving the reliability of device operation.

• The membrane screens with aperture of 1mm/2mm have high efficient separation, maximum retention of fine fibers and hair in water, protection of subsequent MBR membrane filtration systems/biological aerated filters/other biochemical processes .

• The mesh panel material SUS304and SUS316 are optional.

• The capacity can be up to 100,000 m³/day



High Flow

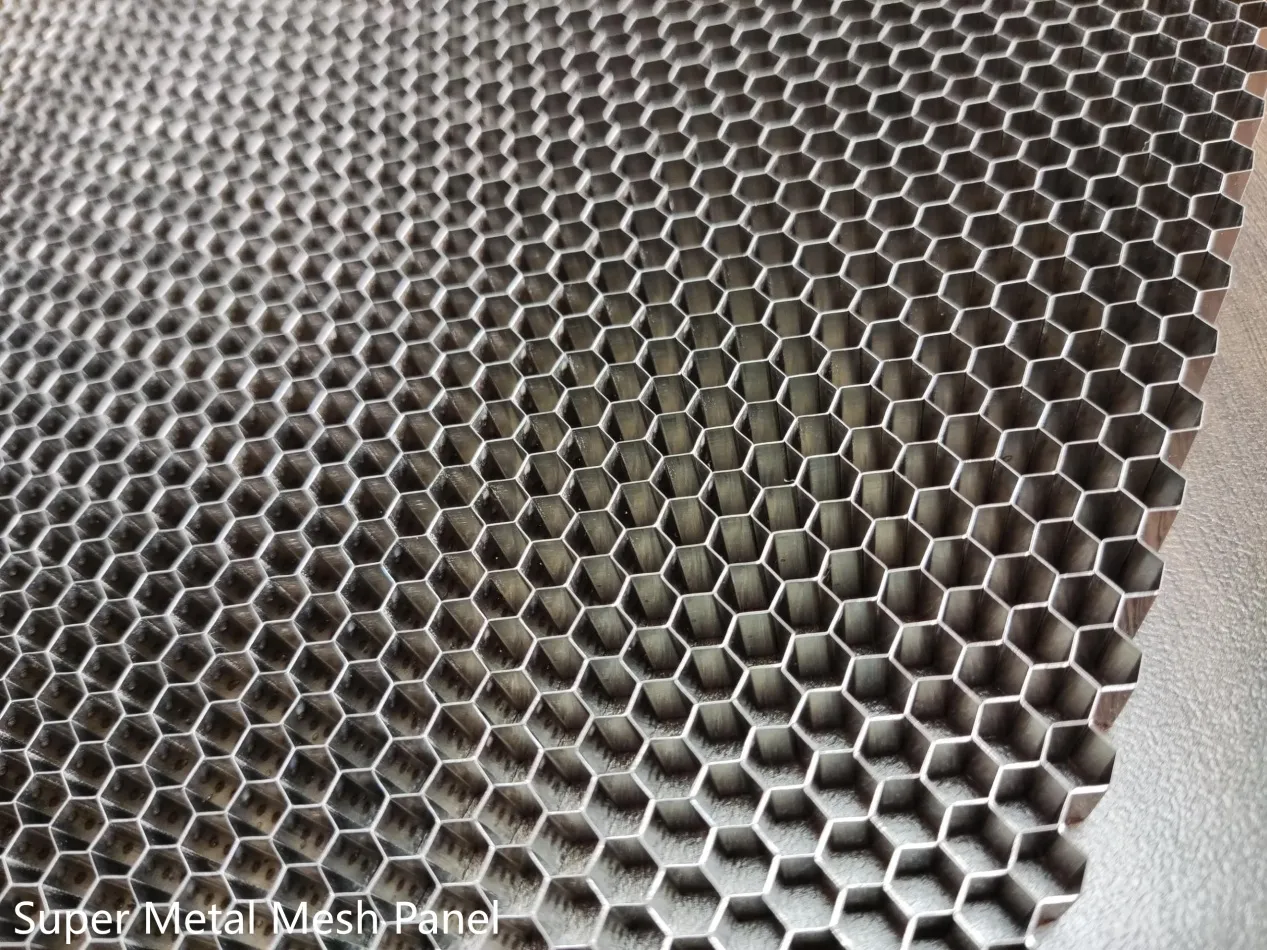

Super Metal Mesh Panel

• The aperture ratio of mesh panel is over 80%, increasing the flow area and fow rate.

• The fine screens with aperture of3mm/5mm can effectively remove small solids, hair, and fibers in water improving the reliability of device operation.

• The membrane screens with aperture of 1mm/2mm have high efficient separation, maximum retention of fine fibers and hair in water, protection of subsequent MBR membrane filtration systems/biological aerated filters/other biochemical processes.

• Stainless steel frame and longitudinal reinforcing ribs ensure impact resistance of mesh panel.

• The mesh panel material SUS304and SUS316 are optional.

• The capacity can be up to 200.000 m³/day



High Flow

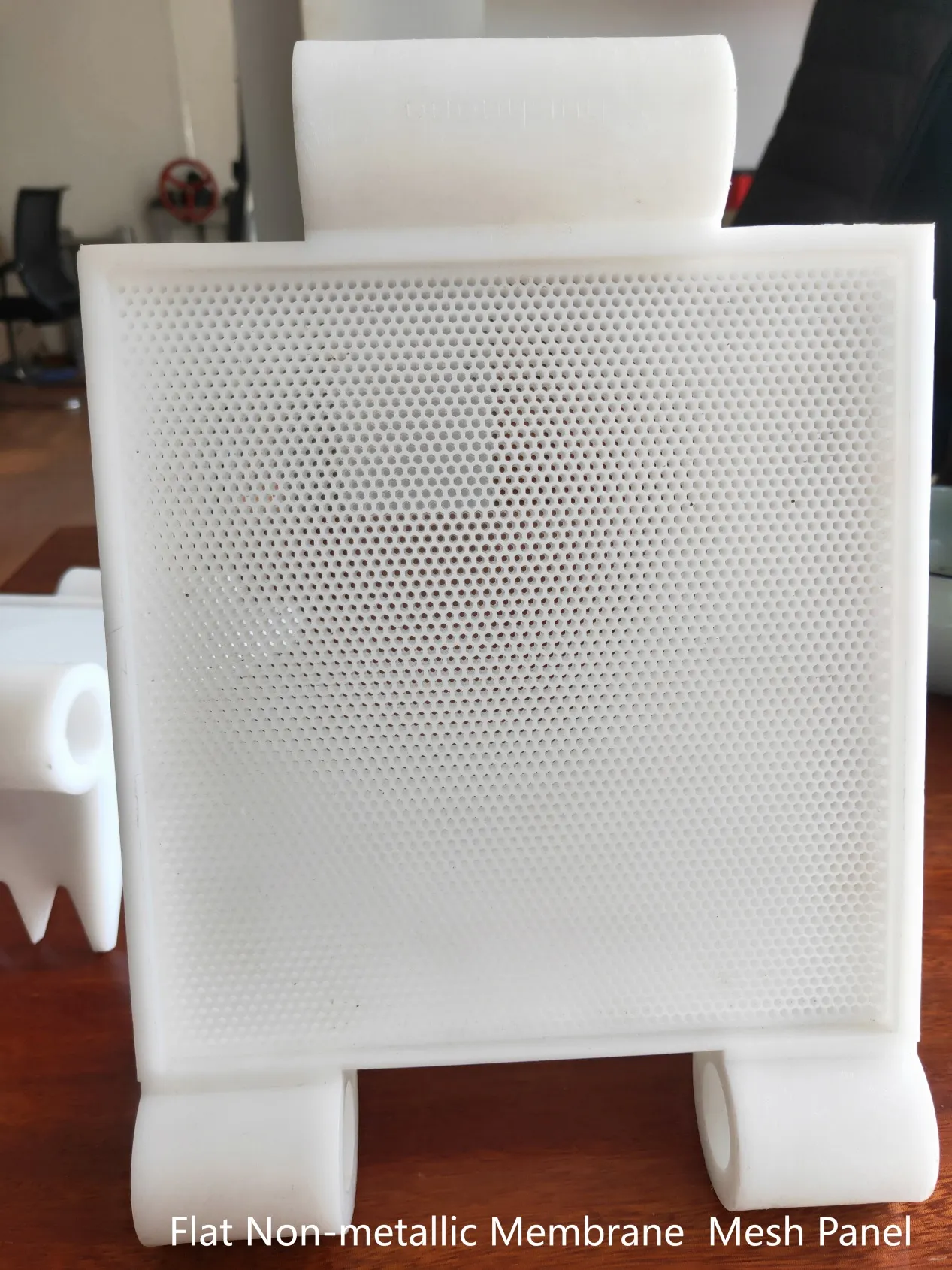

Flat Non-metallic Membrane Mesh Panel

• Standardized mesh panel design,easy to be assembled and replaced.

• Unique conical mesh, effectively preventing blockage.

• The membrane screens with 1mm aperture have high efficient separation, maximum retention of fine fibers and hair in water protection of subsequent MBR membrane filtration systems/biological aerated filters/other biochemical processes.

• Stainless steel frame and longitudinal reinforcing ribs ensure impact resistance of mesh panel.

• The capacity can be up to 100,000 m³/day
